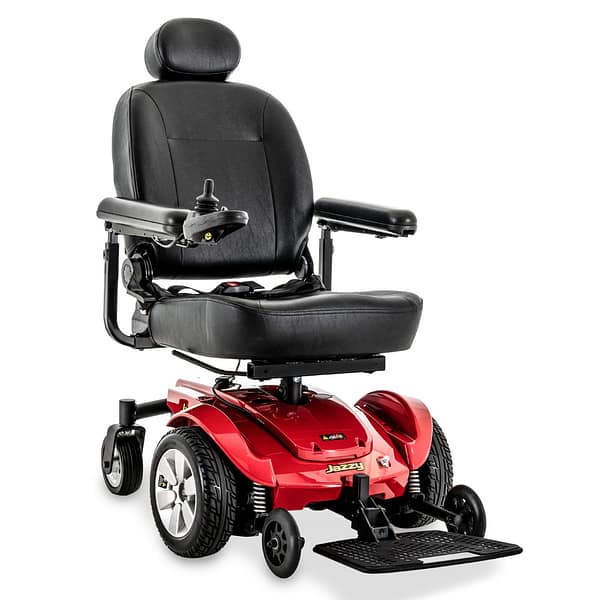

Jazzy Select

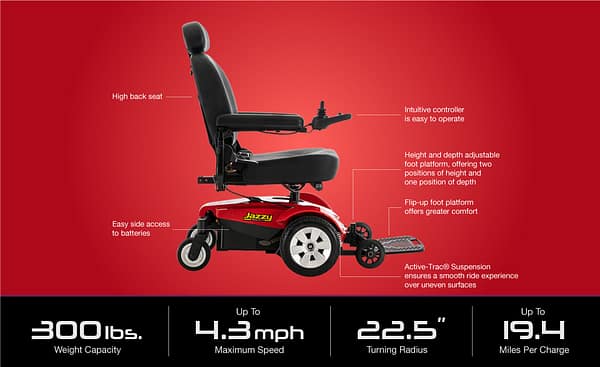

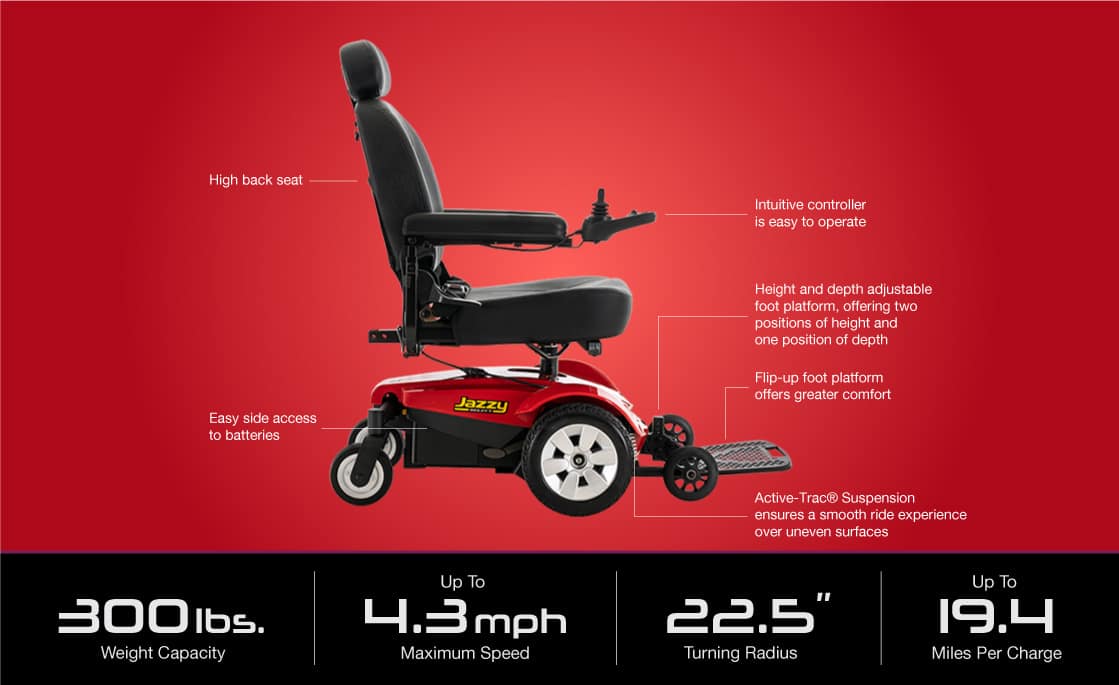

Jazzy Select Features:

300 lbs. weight capacity
Up to 4.3 mph
22.5″ turning radius
Up to 19.4 miles per charge

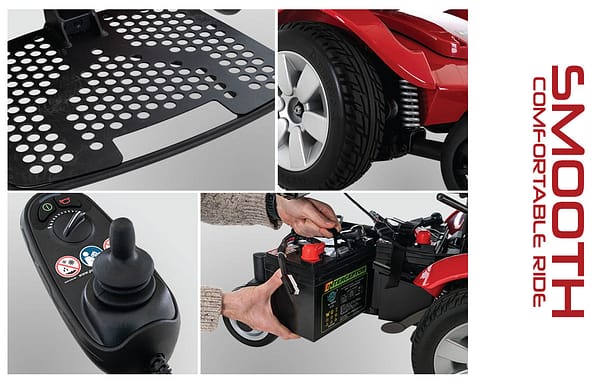

Active-Trac® Suspension ensures a smooth ride experience over uneven surfaces
Mid-wheel drive offers tight turning radius around doorways and corners
Comfortable, depth adjustable, limited recline comfort high-back with headrest
Dual, in-line motors provide greater performance, range and efficiency
Intuitive controller is easy to operate
Easy side access to batteries
Height and depth adjustable foot platform, offering two positions of height and one position of depth
HCPCS Code: Group 2: Standard (K0822/K0823)

CATEGORY	SPECIFICATION
Model	Jazzy Select®
Weight Capacity	300 lbs.
Turning Radius¹	22.5″
Width¹	22.75″
Length¹^,²	32.99″
Maximum Speed³	Up to 4.3 mph
Ground Clearance¹	1.5″ at motor bracket
Front Wheels	5″ solid casters
Drive Wheels	10″ solid
Rear Wheels	6″ solid
Drivetrain	Two motor, mid-wheel® drive
Braking System	Regenerative and electro-mechanical
Suspension Type	Active-Trac®
High-Back Seat	16″x16″-18″, 18″x18″-20″, 20″x18″-20″
High-Back Seat-to-Floor Range	21” – 22”
Standard Electronics	40A, PG GC3⁴
Battery Size (2 required)	12 volt, U-1
Standard Battery Charger	3.5A, off-board
Per-Charge Range^3,8	Up to 19.4 miles
Battery Weight⁷	25.2 lbs. each
Weight of Heaviest Piece⁵	94 lbs.
Warranty	5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries.
HCPCS	Group 2: Standard (K0822/K0823)
