JAZZY 1450

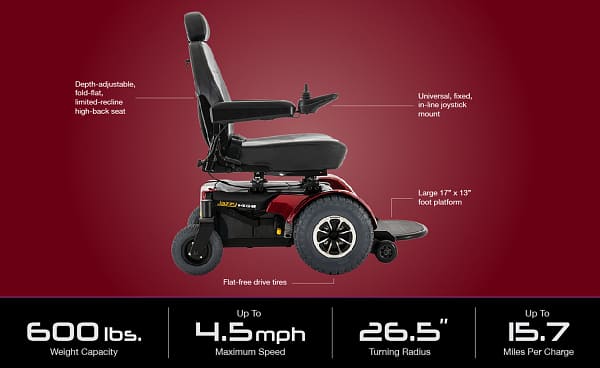

JAZZY 1450 Features:

Depth adjustable, fold-flat, limited-recline high-back seat
Flat-free drive tires
Universal, fixed, in-line joystick mount
Large 17″ x 13″ foot platform
600 lbs. weight capacity
Up to 4.5 mph maximum speed
26.5″ turning radius
Up to 15.7 miles per charge
Maximum performance, extremely efficient motor package
HCPCS Code: Group 2: Very Heavy Duty (K0826/K0827)
Single Power Very Heavy Duty (K0839)

CATEGORY	SPECIFICATION
Model	Jazzy® 1450
Weight Capacity	600 lbs.
Turning Radius¹	26.5″
Width¹	29.25″
Length¹^,²	38.25″
Maximum Speed³	Up to 4.5 mph
Ground Clearance¹	1.5″
Front Wheels	4″ solid anti-tips
Drive Wheels	14″ solid
Rear Wheels	9″ solid casters
Drivetrain	Two motor, front-wheel drive
Braking System	Regenerative and electro-mechanical
Suspension Type	Swing Arm
High-Back Seat (max. size)	32″ x 28″
High-Back Seat-to-Floor Range	20.5” – 22.5”
Synergy® Seating	32”W – 28”D
Synergy® Seat-to-Floor Range	17.25” – 19.25”
Specialty Controls	Yes
Standard Electronics	90A, PG VR2
Battery Size (2 required)	12 volt, Group 24
Standard Battery Charger	8A, off-board
Per-Charge Range³^,⁶	Up to 15.7 miles
Battery Weight⁵	52 lbs. each
Weight of Heaviest Piece⁴	195 lbs.
Standard Seat Weight	52 lbs. (high-back)
Standard Seat Size	24″ x 24″
Medicare Code Coverage	Group 2: Very Heavy Duty (K0826/K0827) Single Power Very Heavy Duty (K0839)
Warranty	K0826/K0827 Models: Lifetime limited warranty on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries.K0839 Models: Lifetime limited warranty on frame; 2-year warranty on electronics; 18-month limited warranty on drive motors
