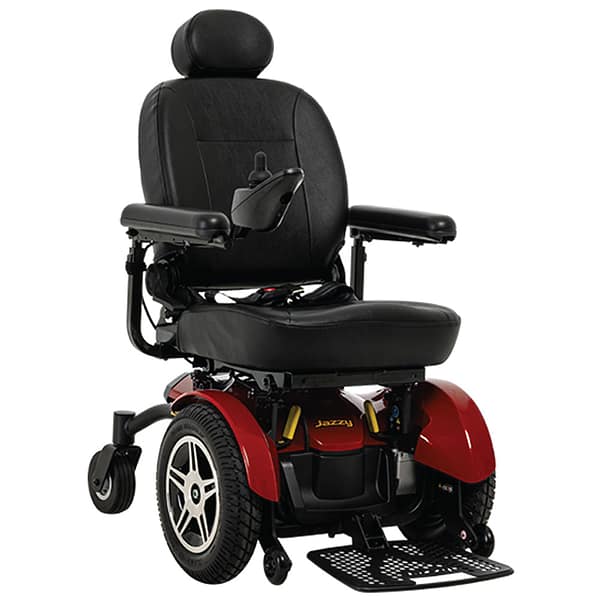

Jazzy Elite HD

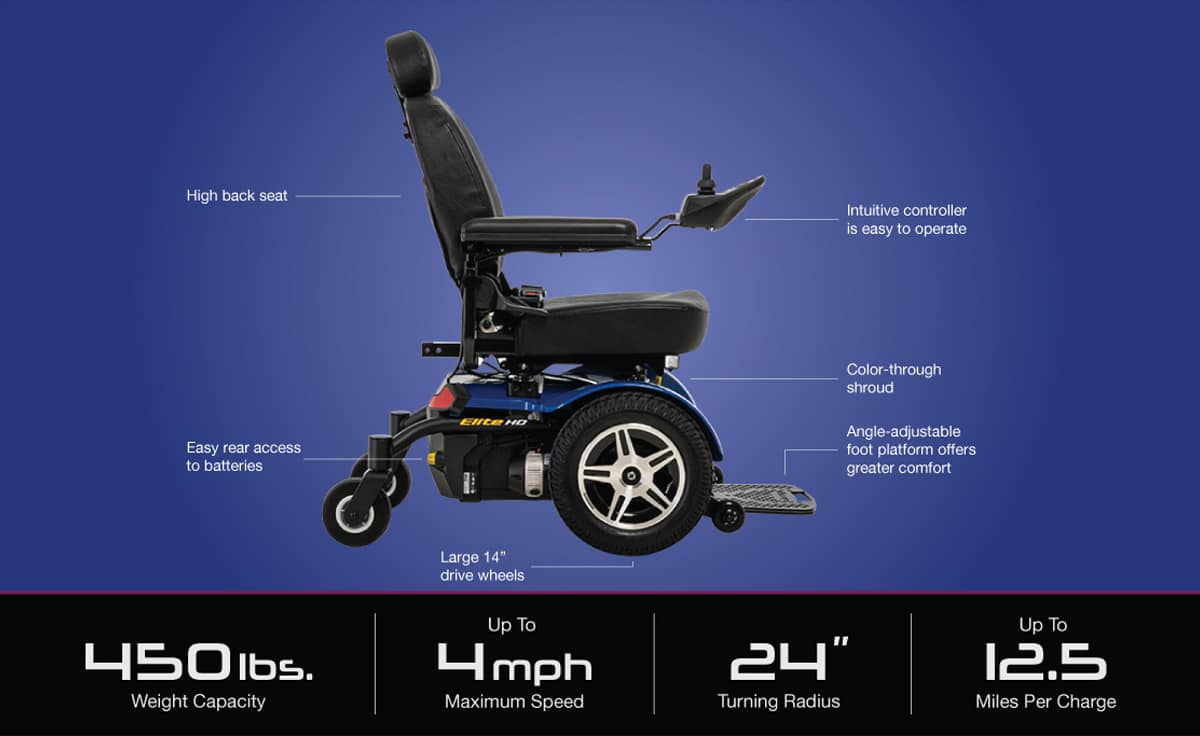

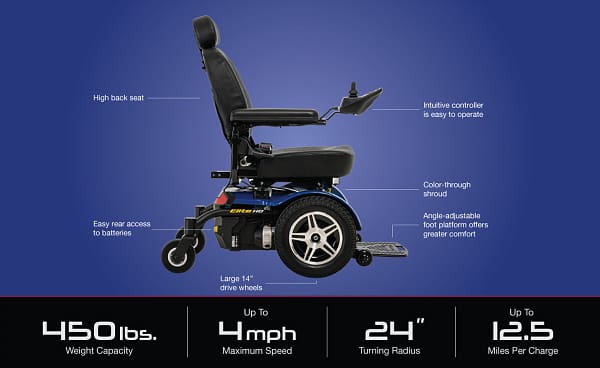

   Jazzy® Elite HD Features:

  • 450 lbs. weight capacity
  • Up to 4 mph maximum speed
  • 24″ turning radius
  • Up to 12.5 miles per charge
  • Comfortable, depth-adjustable, limited recline high-back seat with headrest
  • Easy rear access to batteries
  • Intuitive controller is easy to operate
  • Color-through shroud
  • Angle-adjustable foot platform offers greater comfort
  • Front-wheel drive design for excellent maneuverability
  • 14″ knobby tires and optimum weight distribution provide superior traction
  • 60-amp controller
  • Extended 13-month limited warranty
  • HCPCS Code: Group 2 Heavy Duty (K0824/K0825)
Jazzy® Elite HD
Weight Capacity450 lbs.
Turning Radius124″
Maximum Speed3Up to 4.0 mph
Ground Clearance13″
Front Wheels3″ solid anti-tips
Drive Wheels14″ foam filled
Rear Wheels6″ solid casters
DrivetrainTwo motor, front-wheel drive
Braking SystemRegenerative and electro-mechanical)
Suspension TypeLimited
High-Back Seat (max. size)24″W x 24″D
High-Back Seat-to-Floor Range20” – 22”
Synergy® Seating24”W – 24”D
Synergy® Seat-to-Floor Range15.75” – 17.75”
Standard Electronics60A, Dynamic Shark
Battery Size (2 required)12 volt, NF-22
Standard Battery Charger5A, off-board
Per-Charge Range3,7Up to 12.5 miles
Battery Weight637 lbs. each
Weight of Heaviest Piece499 lbs.
Standard Seat Weight18″ wide – 51.8 lbs.
20″ wide – 54 lbs.
22″ wide – 57.6 lbs.
Standard Seat Size20″ x 18″-20″
Medicare Code CoverageGroup 2 Heavy Duty (K0824/K0825)
Warranty5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
