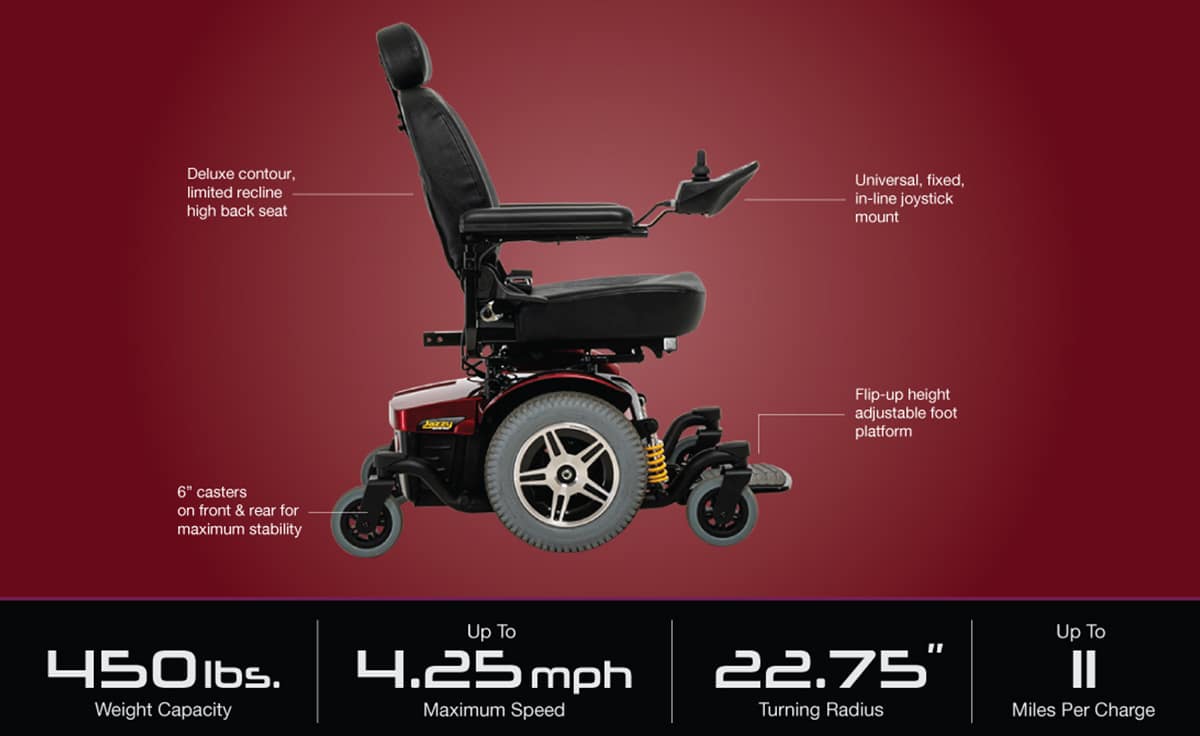

JAZZY  614 HD Features:

  • 450 lbs. weight capacity
  • Up to 4.25 mph maximum speed
  • 22.75″ turning radius
  • Up to 11 miles per charge
  • Deluxe contour, limited recline high back seat
  • 6″ casters on front & rear for maximum stability
  • Universal, fixed, in-line joystick mount
  • Dual enhanced in-line motors for greater efficiency, torque, range and performance
  • 6” casters on front and rear for maximum stability

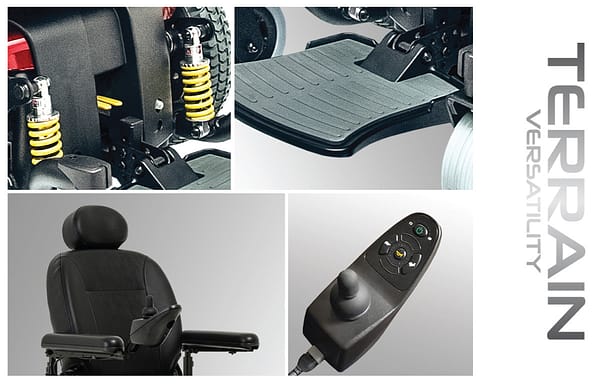

  • Active-Trac® ATX Suspension for enhanced performance over more varied terrain
  • Easy rear access to batteries
  • Seating up to 24” W x 24” D
  • Toolless shroud removal
  • Easy serviceability
  • Flip-up, height-adjustable foot platform
  • HCPCS Code: Group 2: Heavy Duty (K0824/K0825)
Jazzy® 614 HD
Weight Capacity450 lbs.
Turning Radius122.75″
Maximum Speed3Up to 4.25 mph
Ground Clearance12.25″
Front Wheels6″ solid casters
Drive Wheels14″ foam filled
Rear Wheels6″ solid casters
DrivetrainTwo motor, in-line, Mid-Wheel 6®
Braking SystemRegenerative and electro-mechanical
Suspension TypeActive-Trac® (ATX) with Mid-wheel 6® Technology
High-Back Seat (max. size)24″W x 24″D
High-Back Seat-to-Floor Range20.5” – 23.5”
Synergy® Seating24”W – 24”D
Synergy® Seat-to-Floor Range17.75” – 19.75”
Standard Electronics50A, Dynamic Shark
Battery Size (2 required)12 volt, NF-22
Standard Battery Charger5A, off-board
Per-Charge Range3,6Up to 11 miles
Battery Weight537 lbs.
Weight of Heaviest Piece4122 lbs.
Standard Seat Weight18″ wide – 51.8″ lbs.
20″ wide – 54 lbs.
22″ wide – 57.6 lbs.
Standard Seat Size20″ x 18″-20″
22″ x 20″-22″
Medicare Code CoverageGroup 2: Heavy Duty (K0824/K0825)
Warranty5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
