| CATEGORY | SPECIFICATION |
|---|---|

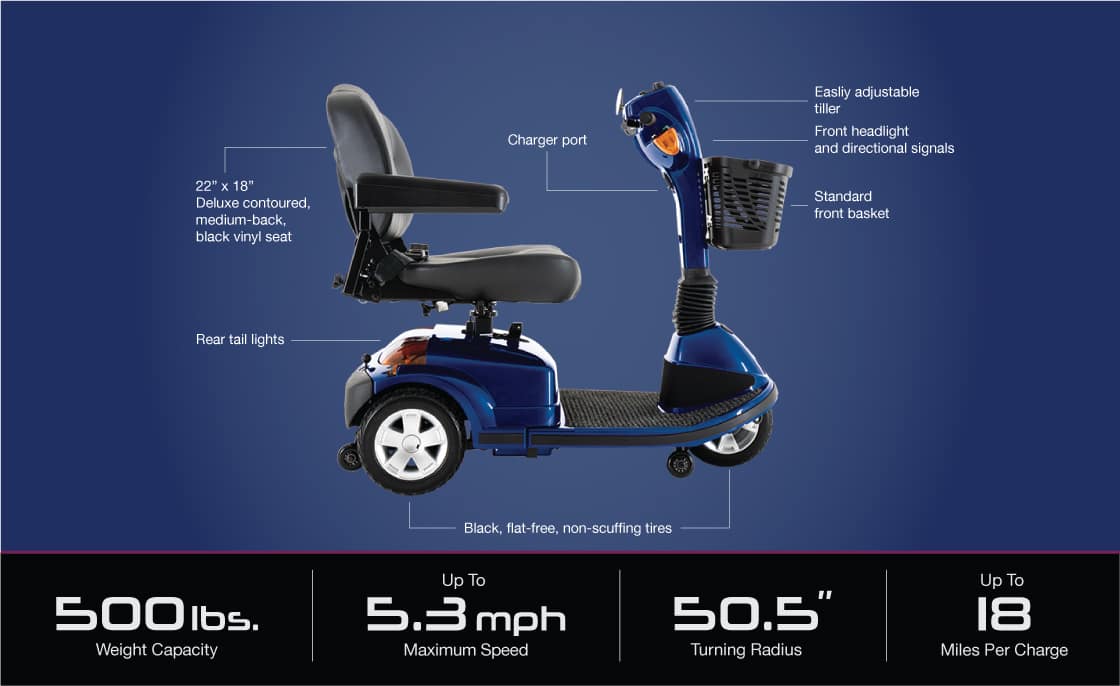

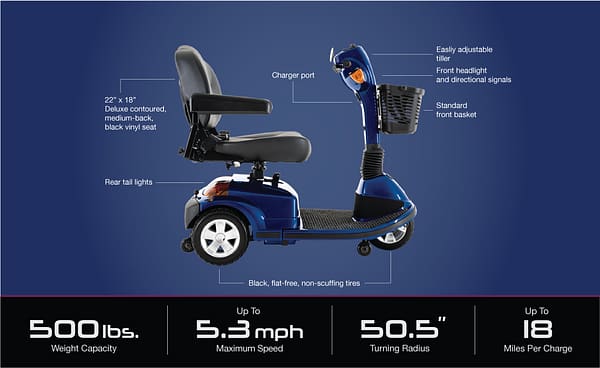

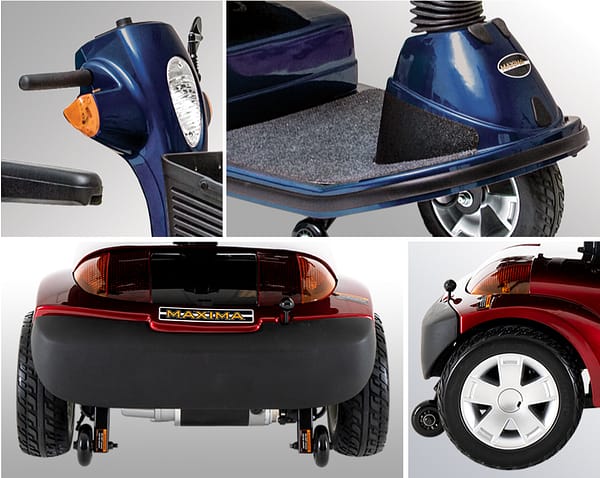

| Model | Maxima 3-Wheel |
| Model Number | SC900 |
| Turning Radius** | 50.5″ |
| Overall Length** | 46″ |
| Overall Width of Base** | 25.5″ |
| Front Tires | 3″ x 10″ Solid |
| Rear Tires | 4″ x 10″ Solid |
| Maximum Speed* | Up to 5.3 mph |
| Ground Clearanc | 4.25″ at mid frame |
| Seat-to-Ground Height Range | 22.5″-24.5″ |
| Seat Type | Deluxe Contoured Medium-back (22″x18″) |
| Weight** | 171 lbs. |
| Seat-to-Deck Height Range | 16″-18″ |
| Battery Weight | 33 lbs. each (NF-22), 24 lbs. each (U-1) |
| Battery Requirements | (2) NF-22, (2) U-1 (power elevating seat) |
| Maximum Range Per Charge* | Up to 18 miles, U-1 (power elevating seat) up to 9.6 miles |
| Battery Charger | Off-board, 5A |
| Maximum Weight Capacity | 500 lbs. |
| Standard Battery Colors | Candy Apple Red, Viper Blue |
| Weight of Heaviest Piece** | 76 lbs. (Rear Section) |
| Medicare Code Coverage | K0802 – Group 1 Very Heavy Duty |
| Warranty | Lifetime limited on frame; 2-year limited on Electronics; 2-year limited on Drivetrain |
