| CATEGORY | SPECIFICATION |
|---|---|

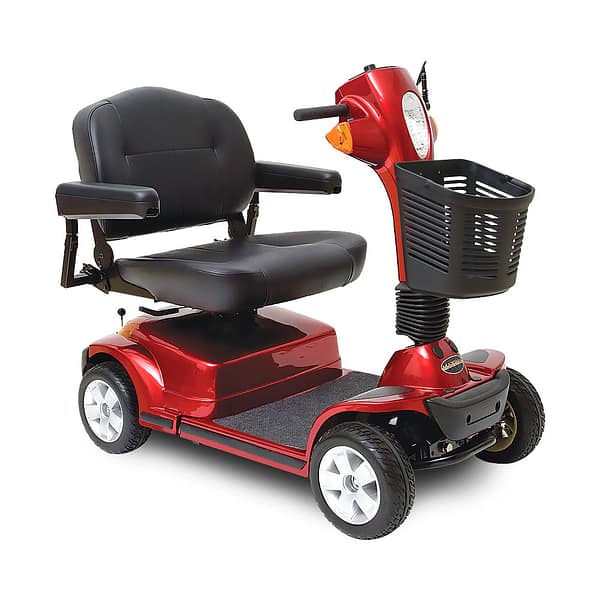

| Model | Maxima 4-Wheel |
| Model Number | SC940 |
| Turning Radius** | 54″ |
| Overall Length** | 47″ |
| Overall Width of Base** | 25.5″ |
| Front Tires | 3″ x 10″ Solid |
| Rear Tires | 4″ x 10″ Solid |
| Maximum Speed* | Up to 5.3 mph |
| Ground Clearanc | 3.25″ at mid frame |
| Seat-to-Ground Height Range | 22.5″-24.5″ |
| Seat Type | Deluxe Contoured Medium-back (22″x18″) |
| Weight** | 176 lbs. |
| Seat-to-Deck Height Range | 16″-18″ |
| Battery Weight | 38 lbs. each |
| Battery Requirements | (2) NF-22 |
| Maximum Range Per Charge* | Up to 16 miles |
| Battery Charger | Off-board, 5A |
| Maximum Weight Capacity | 500 lbs. |
| Standard Battery Colors | Candy Apple Red, Viper Blue |
| Weight of Heaviest Piece** | 76 lbs. (Rear Section) |
| Medicare Code Coverage | K0808 – Group 2 Very Heavy Duty*** |
| Warranty | Lifetime limited on frame; 2-year limited on Electronics; 2-year limited on Drivetrain |
