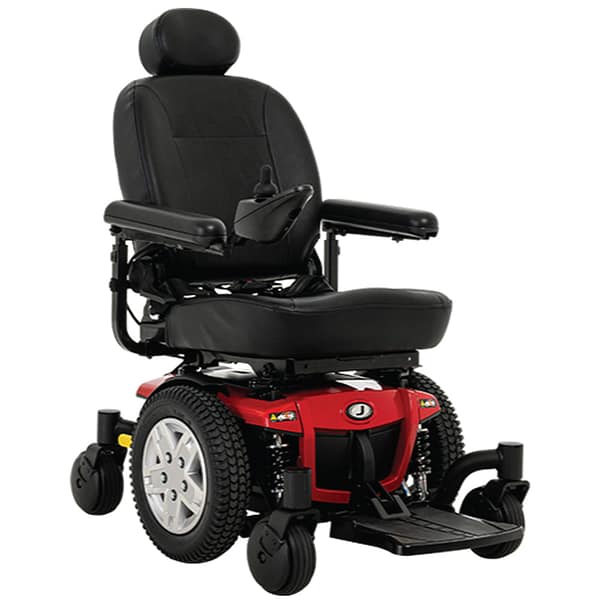

The Jazzy Elite ES Portable

The Jazzy® Elite ES Portable Features:

300 lbs. weight capacity
Up to 4 mph maximum speed
24.75″ turning radius
Up to 11 miles per charge
Comfortable, depth-adjustable, limited-recline comfort high-back seat available
Black, flat-free non-marking tires
Universal, fixed, in-line joystick mount
Flip-up foot platform
Easy disassembly for convenient transport
In-line, front-wheel drive technology
40-amp, PG GC 3 controller
Simple main frame design for easy serviceability
HCPCS Code: Group 2: Standard, Portable (K0820/K0821)

CATEGORY	SPECIFICATION
Model	Jazzy® Elite ES Portable
Weight Capacity	300 lbs.
Turning Radius¹	24.75″
Width¹	22.75″
Length¹^,²	34.75″
Maximum Speed³	Up to 4 mph
Ground Clearance¹	1.5″
Front Wheels	3″ solid anti-tips
Drive Wheels	9″ solid
Rear Wheels	6″ solid casters
Drivetrain	Two motor, in-line, front-wheel drive
Braking System	Regenerative and electro-mechanical)
Suspension Type	Limited
High-Back Seat (max. size)	20″W x 20″D
High-Back Seat-to-Floor Range	21.5” – 23.5”
Standard Electronics	40A, PG GC3
Battery Size (2 required)	12 volt, U-1
Standard Battery Charger	3.5A, off-board
Per-Charge Range³^,⁶	Up to 11 miles
Battery Weight⁵	25 lbs. each
Weight of Heaviest Piece⁴	48 lbs.
Standard Seat Weight	43 lbs. (comfort, high-back)
Standard Seat Size	16″ x 16″-18″, 18″ x 18″-20″, 20″ x 18″-20″
Medicare Code Coverage	Group 2: Standard, Portable (K0820/K0821)
Warranty	5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries.
